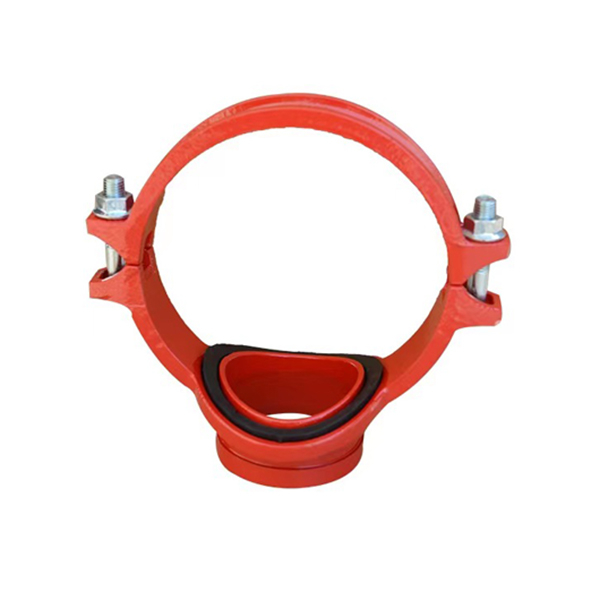

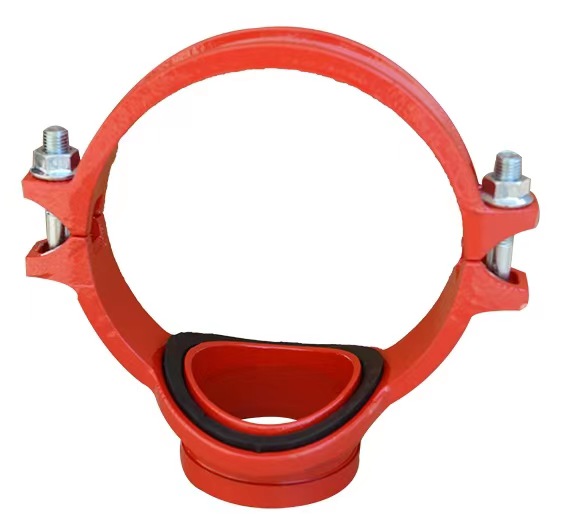

Mechanical Tee
Grooved pipe couplings and fittings are used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system.
Construction
Parts | Material |
Mechanical Tee | Ductile Iron ASTM A536 Grade 65-45-12 |
Gasket Ring | EPDM, Nitrile Rubber (NBR), Silicon Rubber |
Bolt and Nut | 40 Cr or 35# Carbon Steel, GR 8.8 Galvanized, Stainless Steel. |
Description
Range from DN25(1”) up to DN250(10”).
Epoxy paint 200 microns min: RAL 3000.
Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.
Outlet mechanical tee is a saddle-shaped joint for connecting one side of a pipe in the middle of a straight pipe, the branch pipe is a threaded/grooved connection.
The threaded is female threaded, NPT/BSPT.
Standards
Design: ISO6182, AWWA C606, GB 5135.11
Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.
Pressure Rating: 175-300 psi.
Available

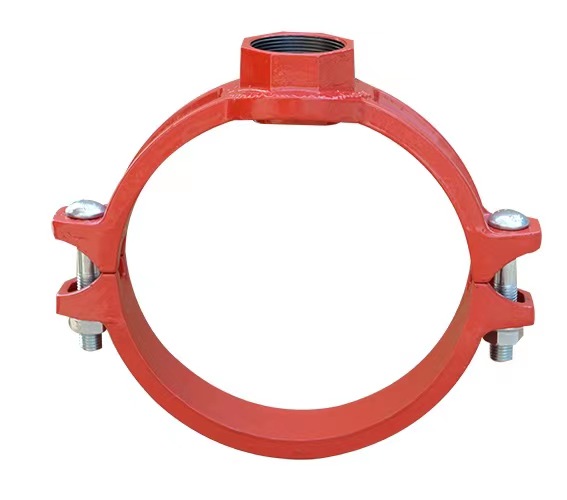

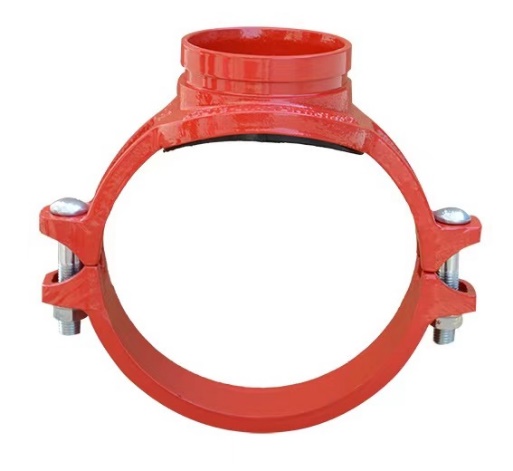

Mechanical Tee Grooved Mechanical Tee Threaded
Suitabilities
Water Fire Fighting Oil& Gas
