U-Bolt Mechanical Tee
Grooved pipe couplings and fittings are used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system.
Construction
Parts | Material |
Mechanical Tee | Ductile Iron ASTM A536 Grade 65-45-12 |
Gasket Ring | EPDM, Nitrile Rubber (NBR), Silicon Rubber |
Bolt and Nut | 40 Cr or 35# Carbon Steel, GR 8.8 Galvanized, Stainless Steel. |
Description
Range from DN25(1”) up to DN150(6”).
Epoxy paint 200 microns min: RAL 3000.
Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.

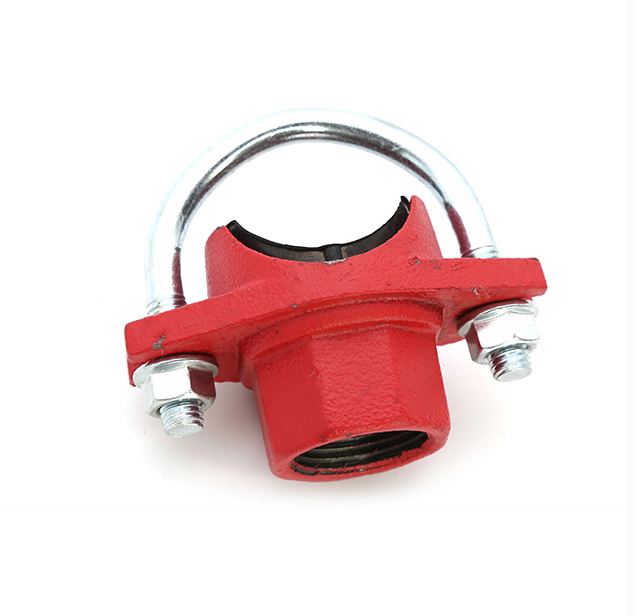

The U-bolt mechanical tee is a saddle-shaped connecting piece for connecting the branch pipe in the middle of the straight pipe and the U-bolt on the lower cover, and the branch pipe is a threaded connection. It can be connected to fire sprinklers, pressure gauges, drains, etc.
The threaded is female threaded, NPT/BSPT.
Standards
Design: ISO6182, AWWA C606, GB 5135.11
Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.
Pressure Rating: 175-300 psi.
Available

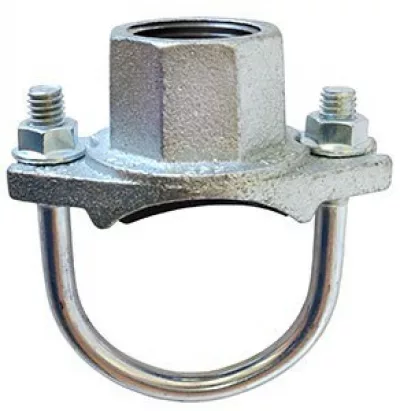

Galvanized U-Bolt Mechanical Tee U-Bolt Mechanical Tee with Stainless Bolt and Nut
Suitabilities
Water Fire Fighting Oil& Gas
