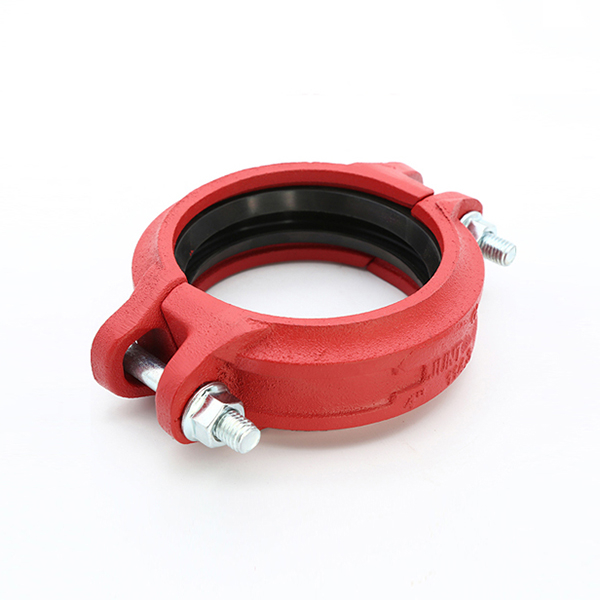

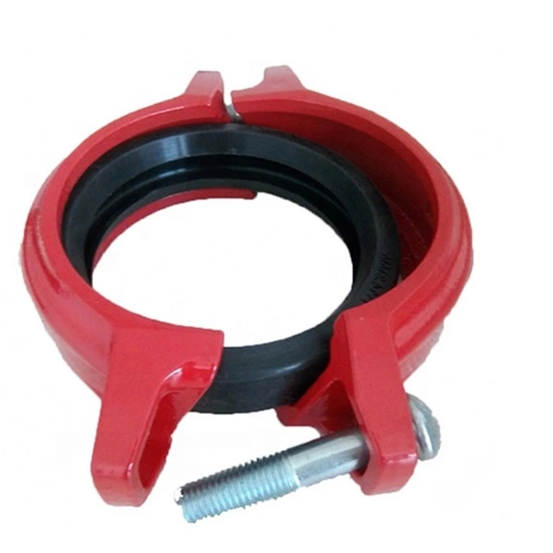

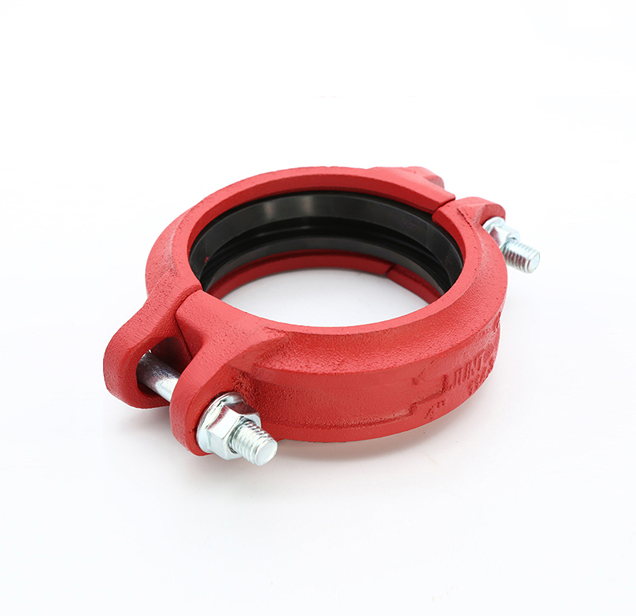

Angle Pad Coupling
Grooved pipe couplings and fittings are used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system.
Construction
Parts | Material |
Coupling | Ductile Iron ASTM A536 Grade 65-45-12 |
Gasket Ring | EPDM, Nitrile Rubber (NBR), Silicon Rubber |
Bolt and Nut | 40 Cr or 35# Carbon Steel, GR 8.8 Galvanized, Stainless Steel. |
Description
Range from DN25(1”) up to DN300(12”).
Epoxy paint 200 microns min: RAL 3000.
Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.
Angle pad couplings: They uses pressure and a self-tightening sealing ring force produced by medium pressure for a seal. At the joint part, the adjacent pipe ends are not allowed to have relative angular displacement and corresponding axial rotation.
Standards
Design: ISO6182, AWWA C606, GB 5135.11
Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.
Pressure Rating: 175-500Psi
Available
Angle Coupling
Suitabilities
Water Fire Fighting Oil& Gas
