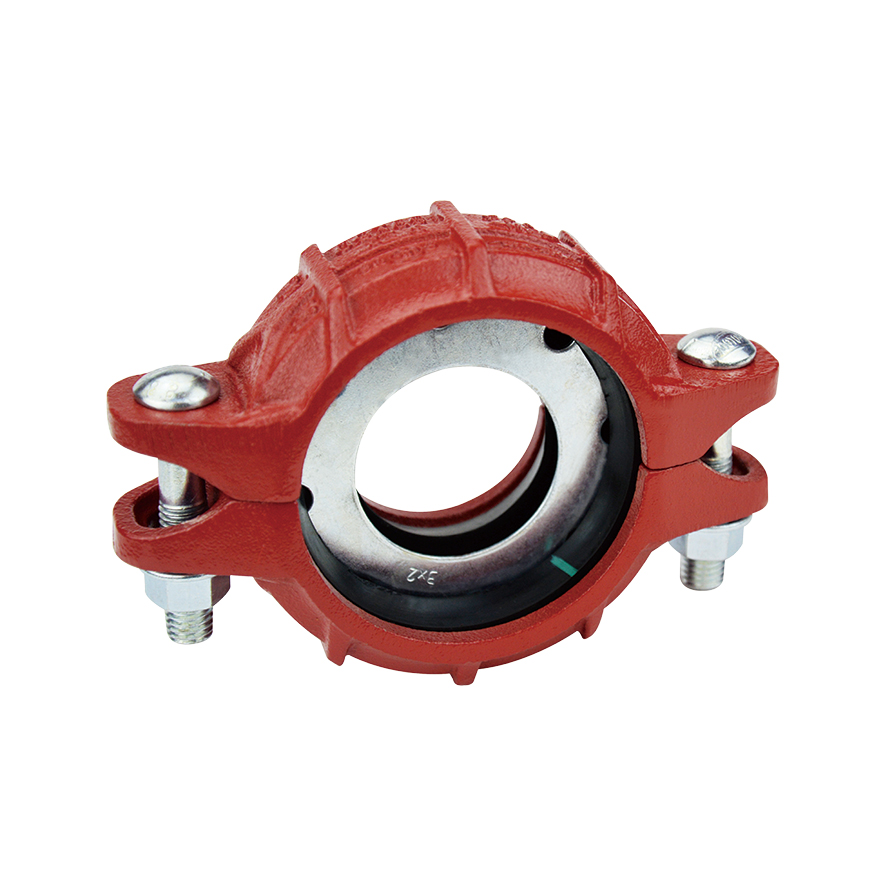

Reducing Flexible Coupling
Grooved pipe couplings and fittings are used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system.
Construction
Parts | Material |
Coupling | Ductile Iron ASTM A536 Grade 65-45-12 |
Gasket Ring | EPDM, Nitrile Rubber (NBR), Silicon Rubber |
Bolt and Nut | 40 Cr or 35# Carbon Steel, GR 8.8 Galvanized, Stainless Steel. |
Description
Range from DN50(2”) up to DN200(8”).
Epoxy paint 200 microns min: RAL 3000.
Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.
Reducing couplings: They are pipe fittings designed to allow pipes of dissimilar diameters to be joined together. Reducing flexible couplings adjacent pipe ends allow a certain amount of relative angular displacement and corresponding axial rotation
Standards
Design: ISO6182, AWWA C606, GB 5135.11
Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.
Pressure Rating: 175-500Psi
Available
Reducing Flexible Coupling
Suitabilities
Water Fire Fighting Oil& Gas
