Fast Quick Coupling
Faster Assembly and Cost-effective
Up to 2 times faster than standard grooved couplings;
Up to 10 times faster than welded joints Up to 6 times faster than flanged joints
Construction
Parts | Material |
Coupling | Ductile Iron ASTM A536 Grade 65-45-12 |
Gasket Ring | EPDM, Nitrile Rubber (NBR), Silicon Rubber |
Bolt and Nut | 40 Cr or 35# Carbon Steel, GR 8.8 Galvanized, Stainless Steel. |
Description
Range from DN25(1”) up to DN200(8”).
Epoxy paint 200 microns min: RAL 3000.
Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.
Rigid grooved couplings: These do not allow movement and can be used wherever immobility in the pipe joint is needed, similar to a flanged or welded joint.
Standards
Design: ISO6182, AWWA C606, GB 5135.11
Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.
Pressure Rating: 175-500Psi
Available

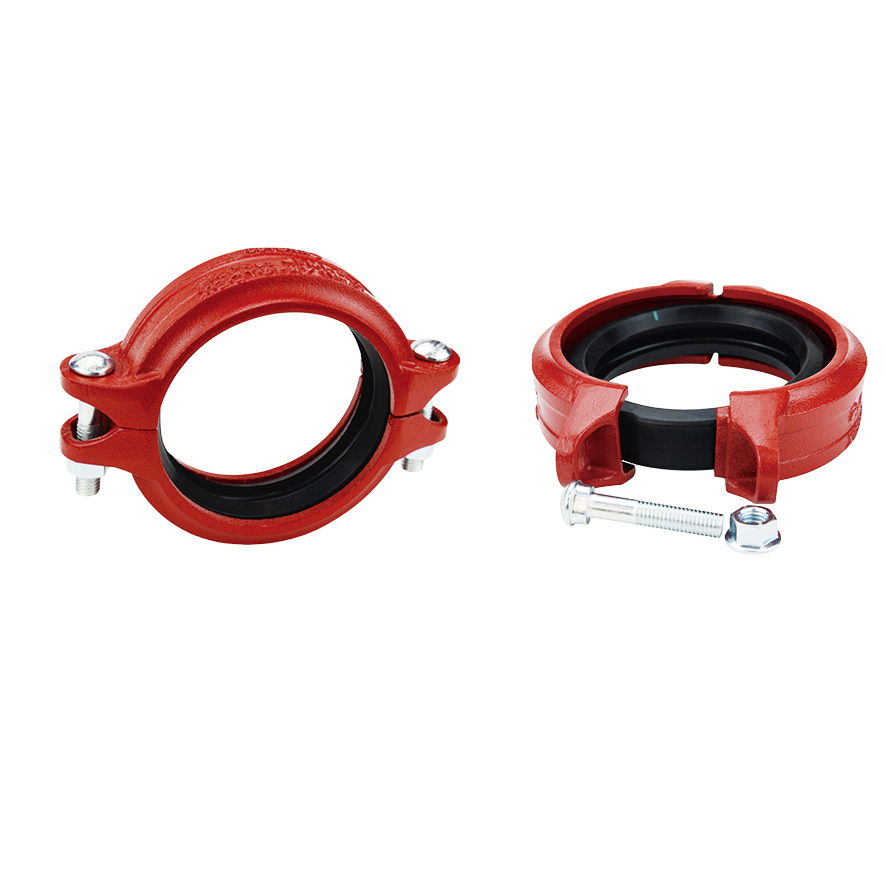

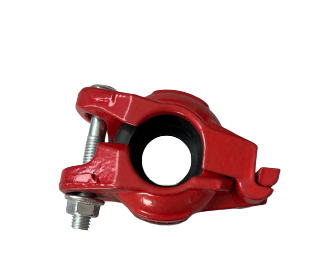

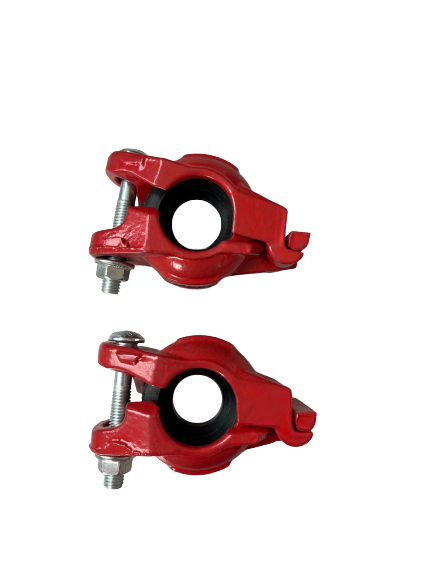

Fast Quick Coupling with One Bolt or Two Bolt
Suitabilities
Water Fire Fighting Oil& Gas
