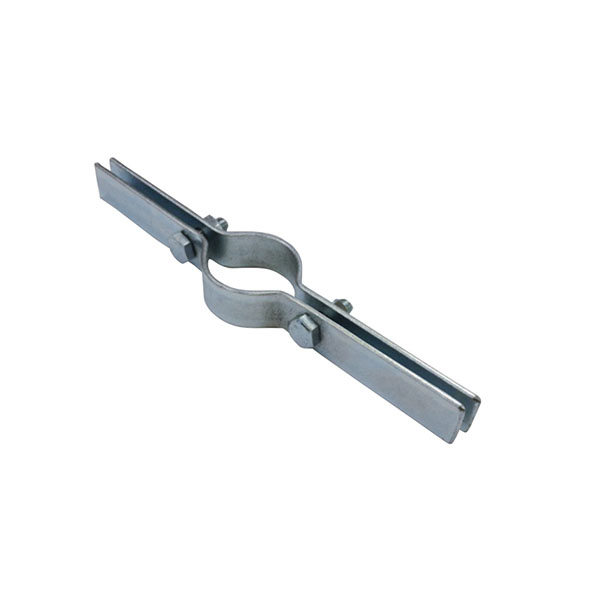

Riser Clamp

Riser Clamps

A riser clamp, also named extension pipe, is a pipe clamp for the support of vertical pipelines, and they include separate load bolts, to transfer the piping load to the remainder of the pipe hanger assembly. Generally, clevis hangers include a yoke that connects to your support overhead.

Riser Clamps are used by mechanical building trades to support and stabilize vertical runs of piping at each floor level.

Riser clamps are placed around pipe, and then fasteners are tightened to clamp them onto the pipe. They are usually located at floor penetration.

Riser clamps transfer the weight of the pipe through the riser to the building structure.

The light duty riser clamp features an electro-galvanized finish. It is for light duty plumbing and mechanical projects.

Description

• Size Range: 1/2 inches to 24 inches

• Maximum temperature Plain 650°F, Galvanized 450°F.

• Conforms with Federal Specification A-A-11192A, WW-H-171 (Type 8), MSS SP-69(Type 1).

• Installation: Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe. Bolt torques should be per industry standards. Clamp is designed for standard steel pipe O.D. and this must be considered in sizing the riser for other types of piping.

• Ordering: Specify figure number, pipe size, description and finish.

• Service: For support of stationary steel pipe risers, cast iron pipe or conduit. This product is not intended for use with hanger rods.

Construction

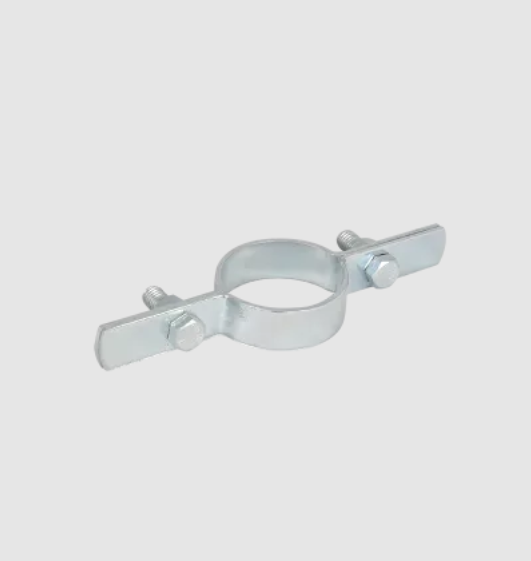

Light Duty Riser Clamp

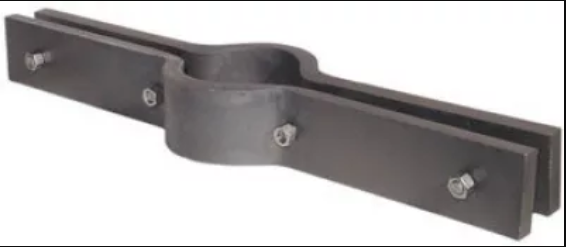

Standard Riser Clamp

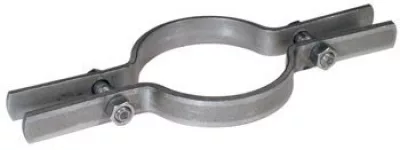

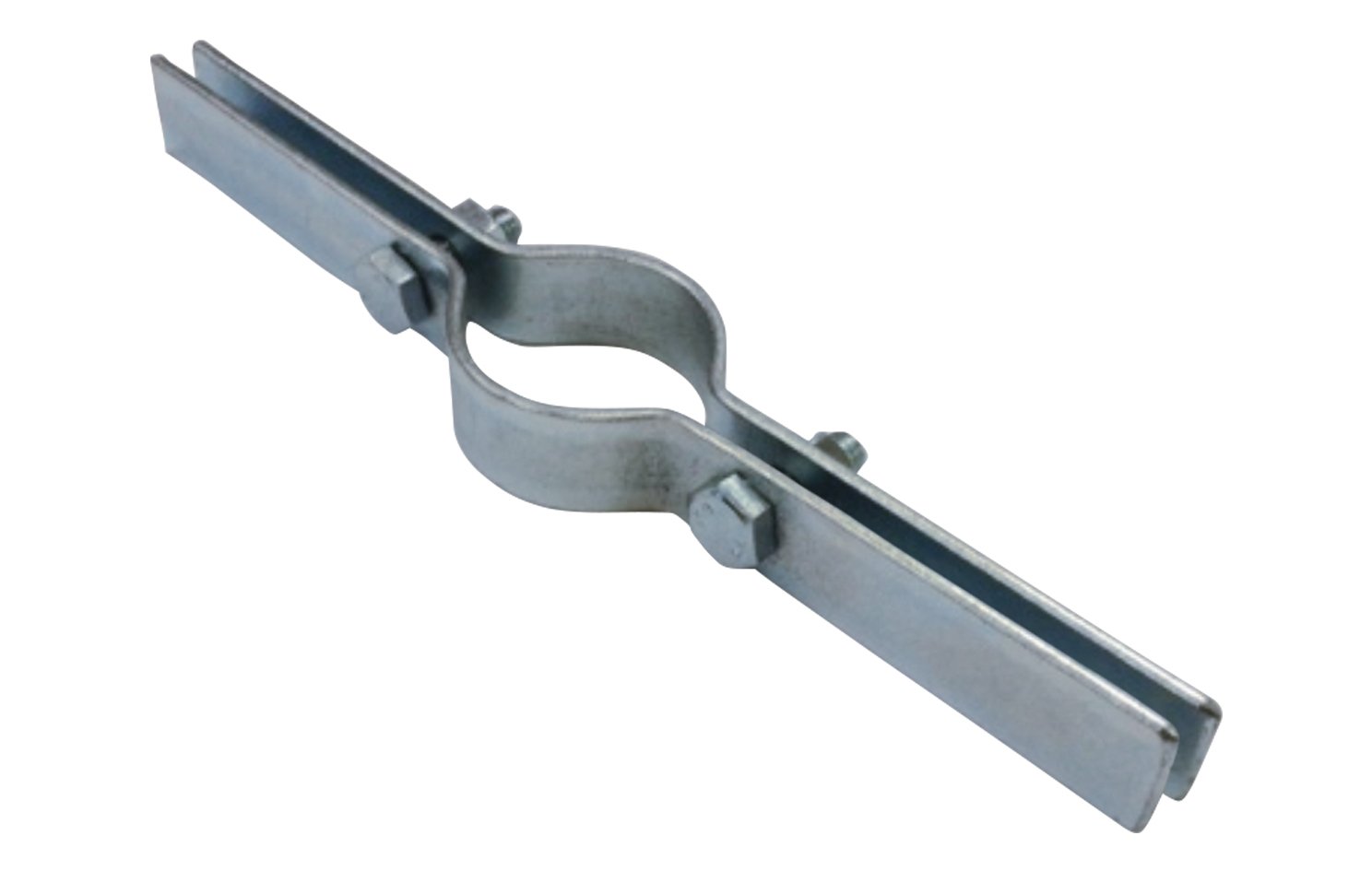

 Extension Pipe or Riser Clamp

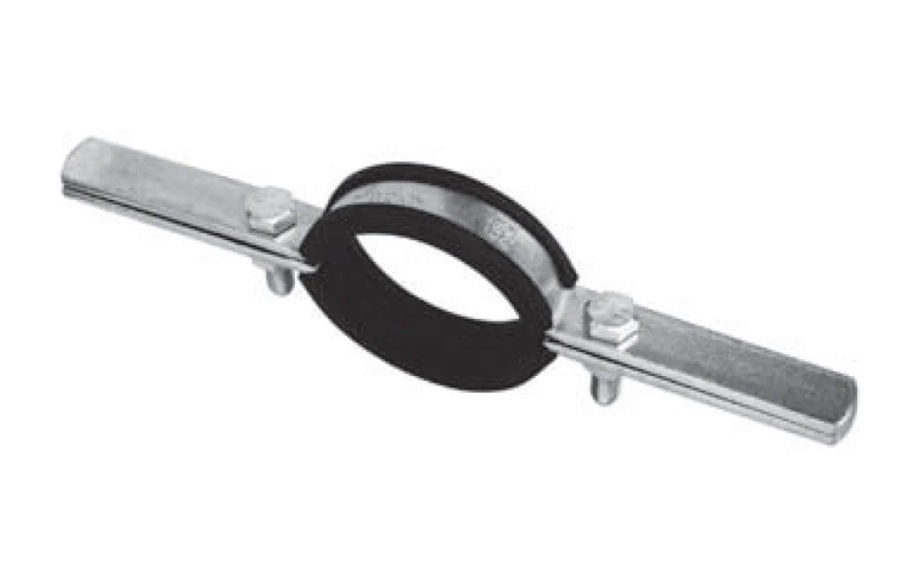

Light Duty Riser Clamps with Rubber Lining

Suitabilities

        Water               Fire Fighting
