SWIVEL RING LOOP HANGER
Swivel hanger, also be called band hanger, ring hanger, loop hanger, is a pipe accessory that loops around a pipe in order to support it.
Swivel hangers are similar to clevis hangers, split ring hangers, and clamp hangers, which are all examples of pipe hangers, but there are qualities that help to set loop hangers apart from the rest.
JYLONG offers various series band and swivel hangers for suspension and support of copper tubing, pipe and other mechanical equipment. These hangers are available in a variety of sizes, materials and finishes.
Description
Size Range: 1/2 inches to 8 inches
Maximum temperature Plain 650°F, Galvanized 450°F.
Conforms with Federal Specification A-A-11192A, MSS SP-36(Type 10).
Ordering: Specify figure number, pipe size, description and finish.

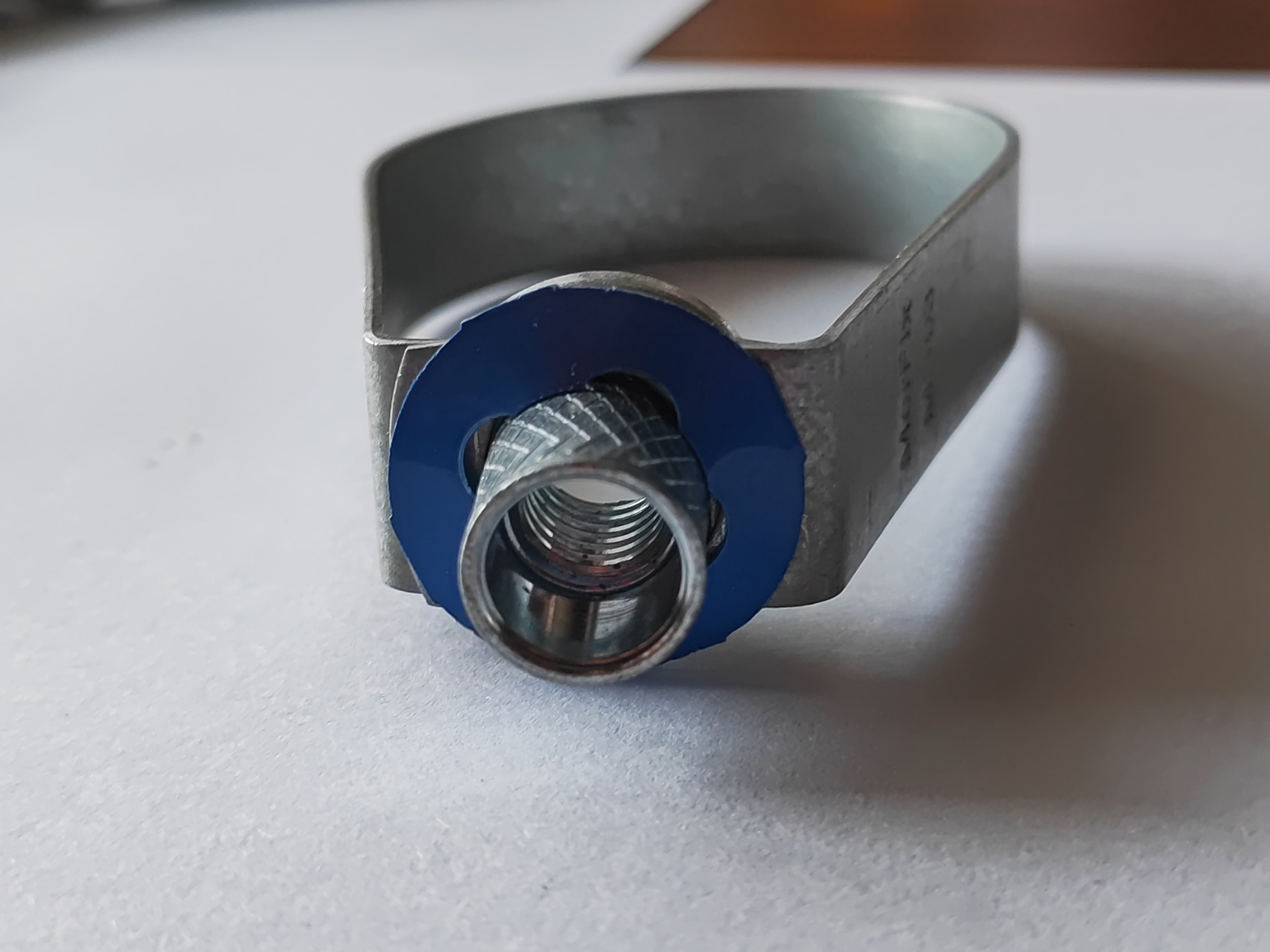

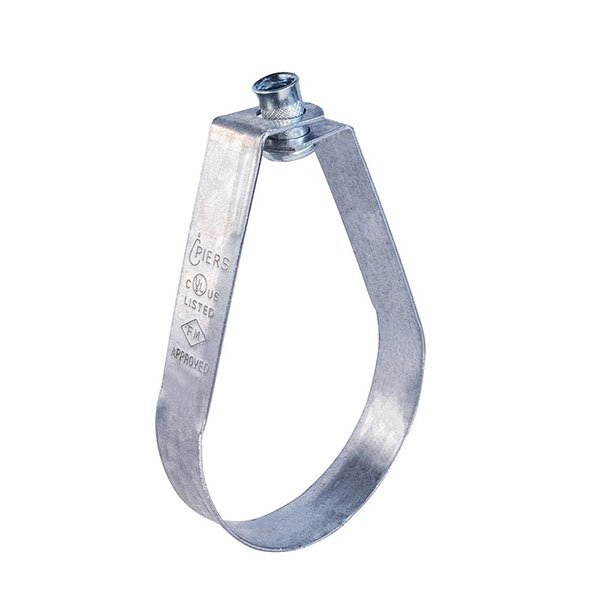

Adjustable band hanger is for fire sprinkler and other general piping purposes. Knurled swivel nut design permits hanger adjustments after installation. This hanger is also available with felt lining, plastic coated and with a removable nut for sizes 1” and 2”.
Heavy duty band hanger for trapeze is designed primarily to support substantially heavier loads than is normally intended for the nominal hanger size. Used extensively to support trapeze installations and the increased loads from both above and below the trapeze assembly.
The 1/2” (15mm) thru 2” (50mm) sizes have flared edges for ease of installation on all pipe types and protects CPVC plastic pipe from abrasion. Captured knurled nut design (flared top) on 1” thru 2” sizes keep nut from separating with hanger. Hanger is easily installed around pipe. The 1/2” (15mm), 3/4” (20mm), and 21/2” (65mm) thru 8” (200mm) models have a spring tension feature and the nut holds it securely in hanger before installation.
Construction
Parts | Material |
Bottom Strap | Carbon steel, black or galvanized |
Stud | Carbon steel, black or galvanized |
Nut | Carbon steel, black or galvanized |
Adjustable band hanger Heavy duty band hanger Flared edges band hanger
Suitabilities
Service: Recommended for the suspension of non-insulated, stationary pipe lines.
Water Fire Fighting
