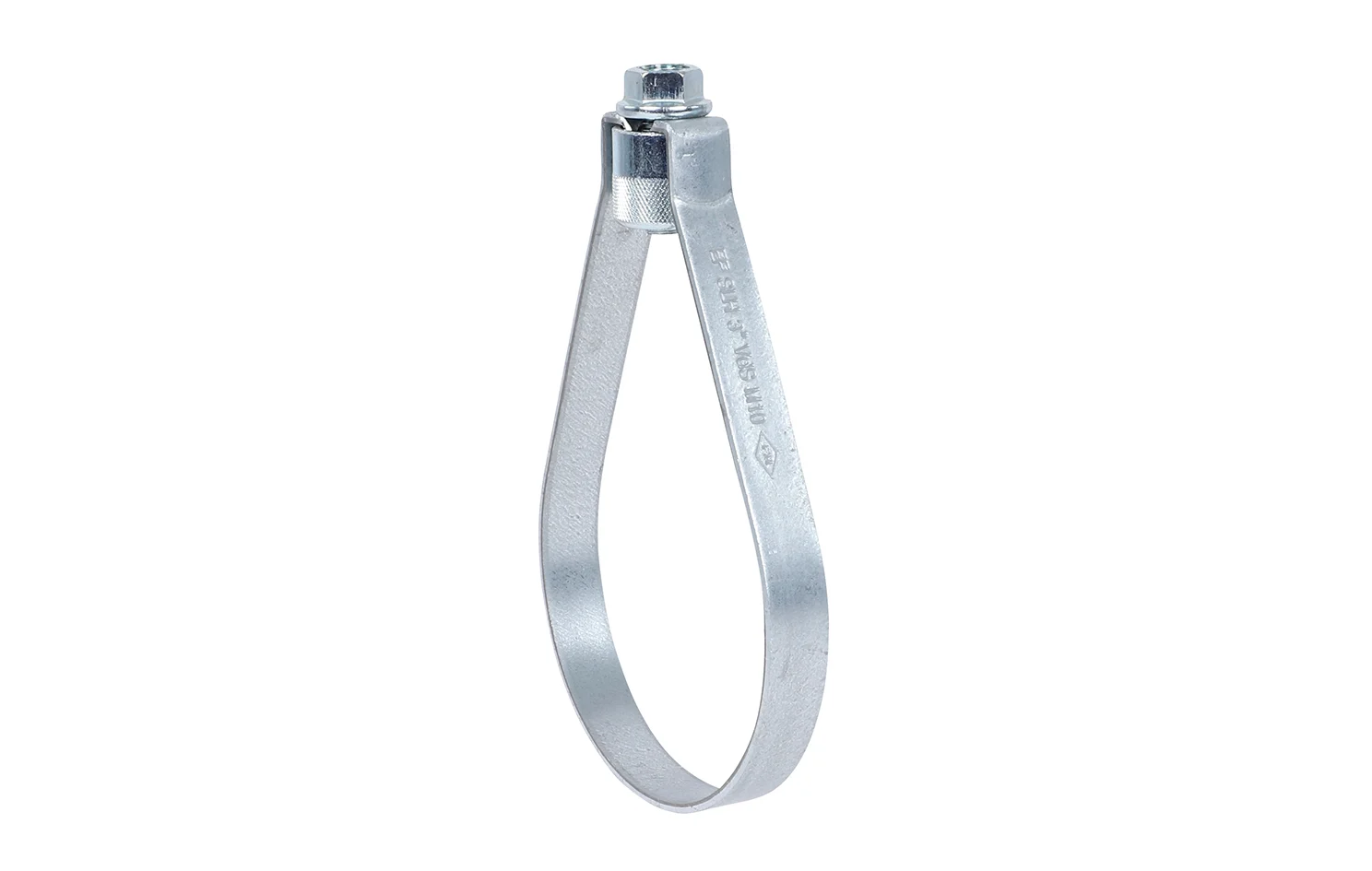

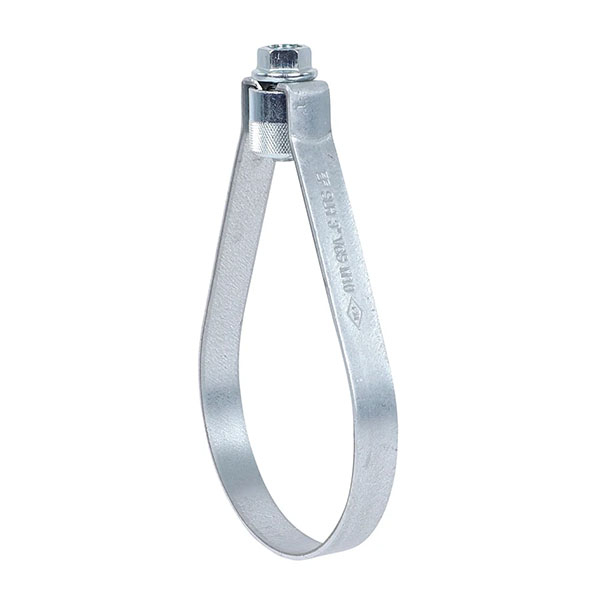

Cup Nut Pipe Loop
Cut nut pipe loop is recommended for automatic sprinkler system.
Description
Size Range: 1 inches to 8 inches
Maximum temperature Plain 650°F, Galvanized 450°F.
Conforms with Federal Specification A-A-11192A, MSS SP-36(Type 10).
Ordering: Specify figure number, pipe size, description and finish.
Construction
Parts | Material |
Bottom Strap | Carbon steel, black or galvanized |
Flange Nut | Carbon steel, black or galvanized |
Cup Nut | Carbon steel, black or galvanized |
Suitabilities
Service: Recommended for the suspension of non-insulated, stationary pipe lines.
Water Fire Fighting
