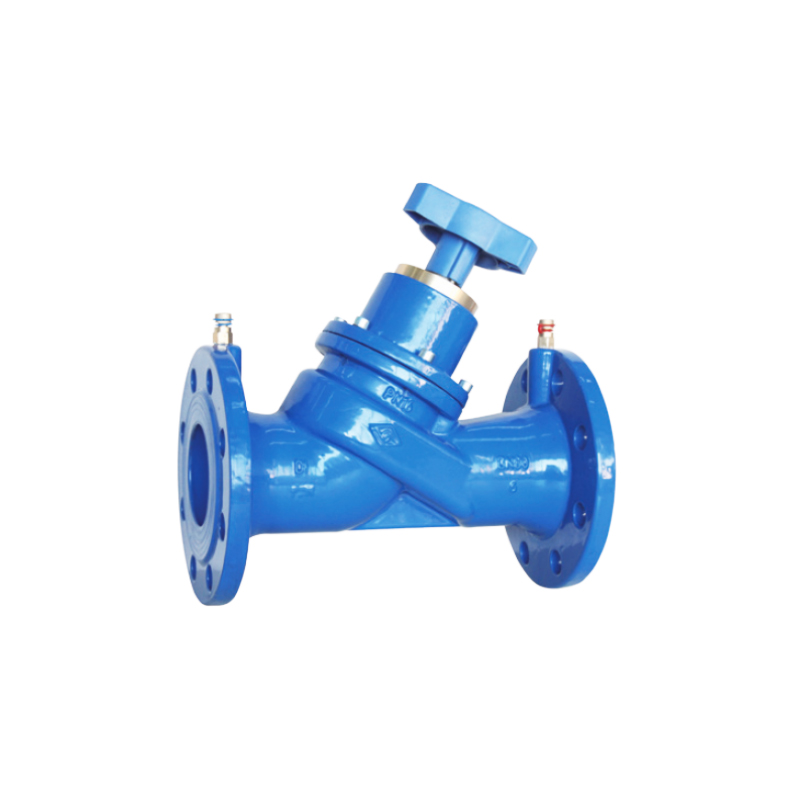

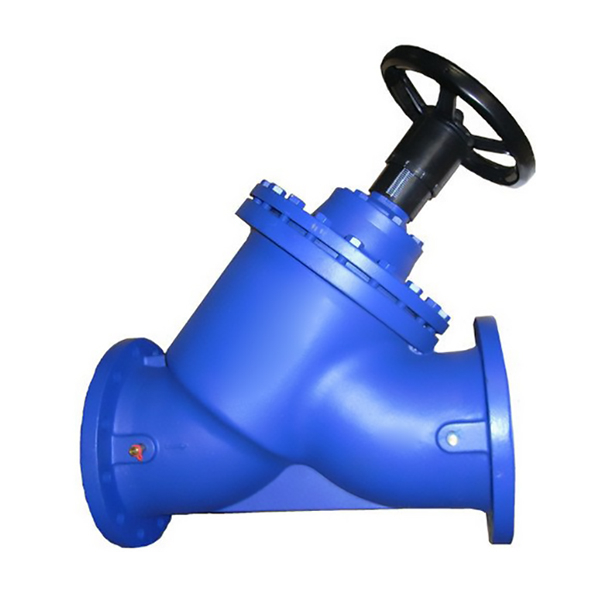

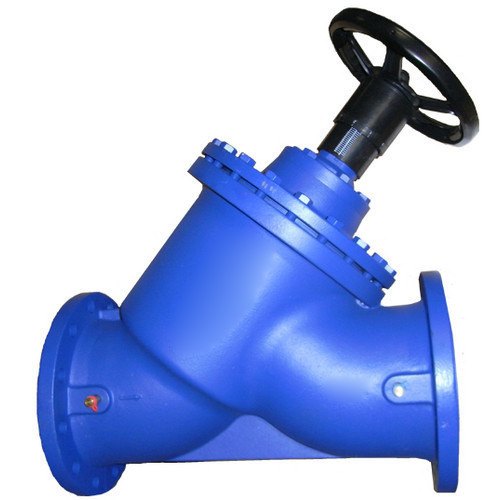

Static Balancing Valve
Balancing valves are valves designed to attain hydraulic balance within such systems by regulating fluid flow and pressure.
Static balance valve is also known as manual balance valve, digital lock balance valve, double-position regulating valve, etc. It achieves the goal of flow regulation by changing the gap between the valve core and valve seat to change the flow resistance through the valve.
Construction
Parts | Material |
Body | Ductile Iron ASTM A536 Grade 65-45-12/EN1563 GJS 450-10 |
Cover | Ductile Iron/ Brass |
Handwheel | Ductile Iron/ PA GF30 |
Disc | DI+EPDM/ Brass |
Disc Nut | Brass |
Stem | Stainless Steel/ Brass |
Pressure Mouth | Brass |
Adjusting Screw | Brass |
O-Ring | EPDM/NBR |
Description
Equalize system pressure, creating comfortable thermal conditions in the building while optimizing energy and perating costs.
It can distribute the new amount of water according to the designed proportion.
All branches increase or decrease at the same time according to the proportion
Range from DN50 up to DN300.
Epoxy paint 200 microns min.
Standards
Flanged: EN1092-2, ASME B16.1 Class 125
Face to face dimension: ASME B16.10, EN558 Series 1
Working Pressure Rating: PN10/16, 150psi
Working Temperature: -10 ℃ - 120 ℃
Available
Suitabilities
Water
