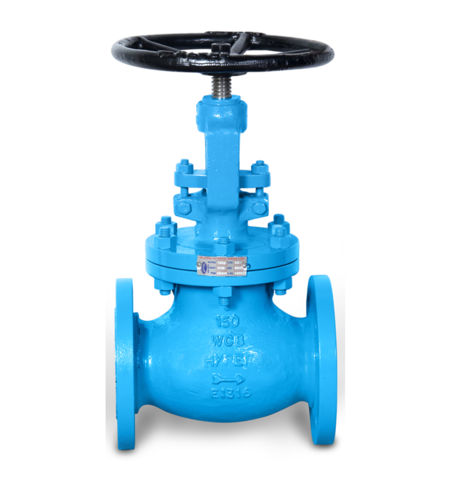

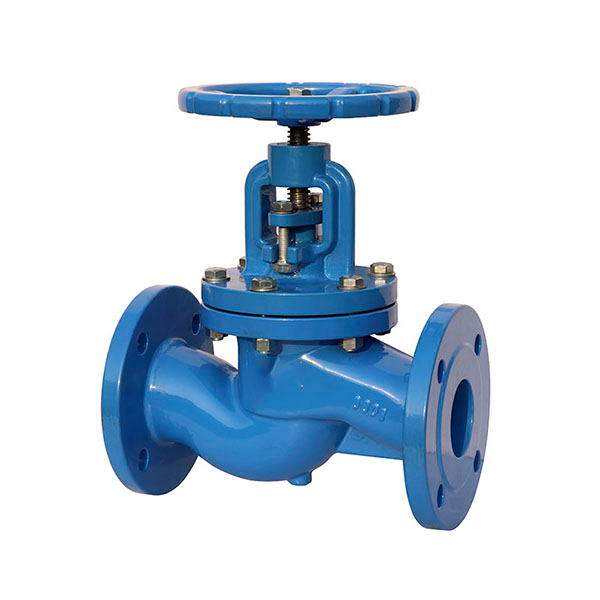

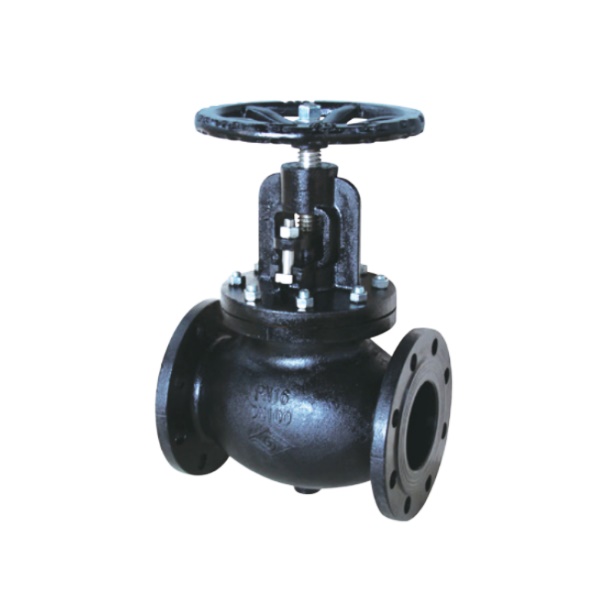

Metal Seated Globe Valve
A globe valve is a type of valve used for regulating flow in a pipeline.
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle.
In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves. Typically, automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.
Construction
Parts | Material |
Body | Ductile Iron ASTM A536 Grade 65-45-12/EN1563 GJS 450-10 |
Bonnet | Ductile Iron ASTM A536 Grade 65-45-12/EN1563 GJS 450-10 |
Handwheel | Ductile Iron ASTM A536 Grade 65-45-12/EN1563 GJS 450-10 |
Disc | Ductile Iron ASTM A536 Grade 65-45-12/EN1563 GJS 450-10 |
Stem Packing | Graphite |
Stem | Stainless Steel |
Description
Metal seated.
Adjustable stem seal.
Packing replaceable under pressure.
Range from DN50 up to DN300.
Epoxy paint 200 microns min.
Standards
Flanged: EN1092-2, ASME B16.1 Class 125, TABLE D/E
Face to face dimension: ASME B16.10, EN558 Series 1
Working Pressure Rating: PN10/16, 200psi
Working Temperature: -10 ℃ - 120 ℃
Available
Suitabilities
Water
