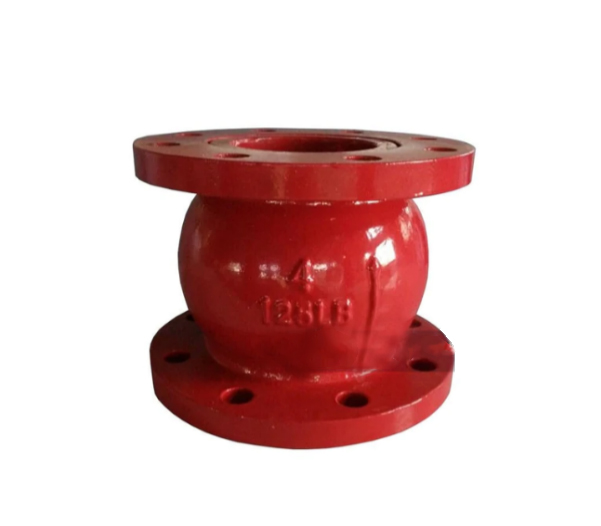

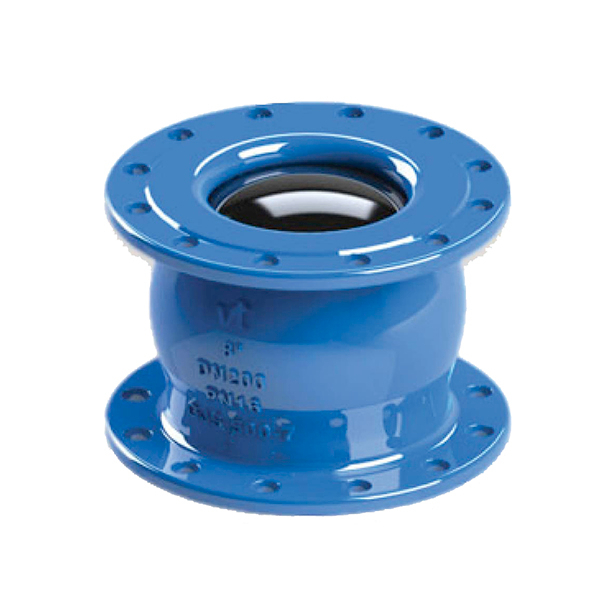

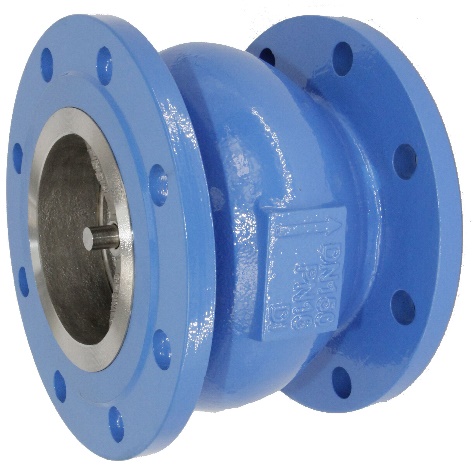

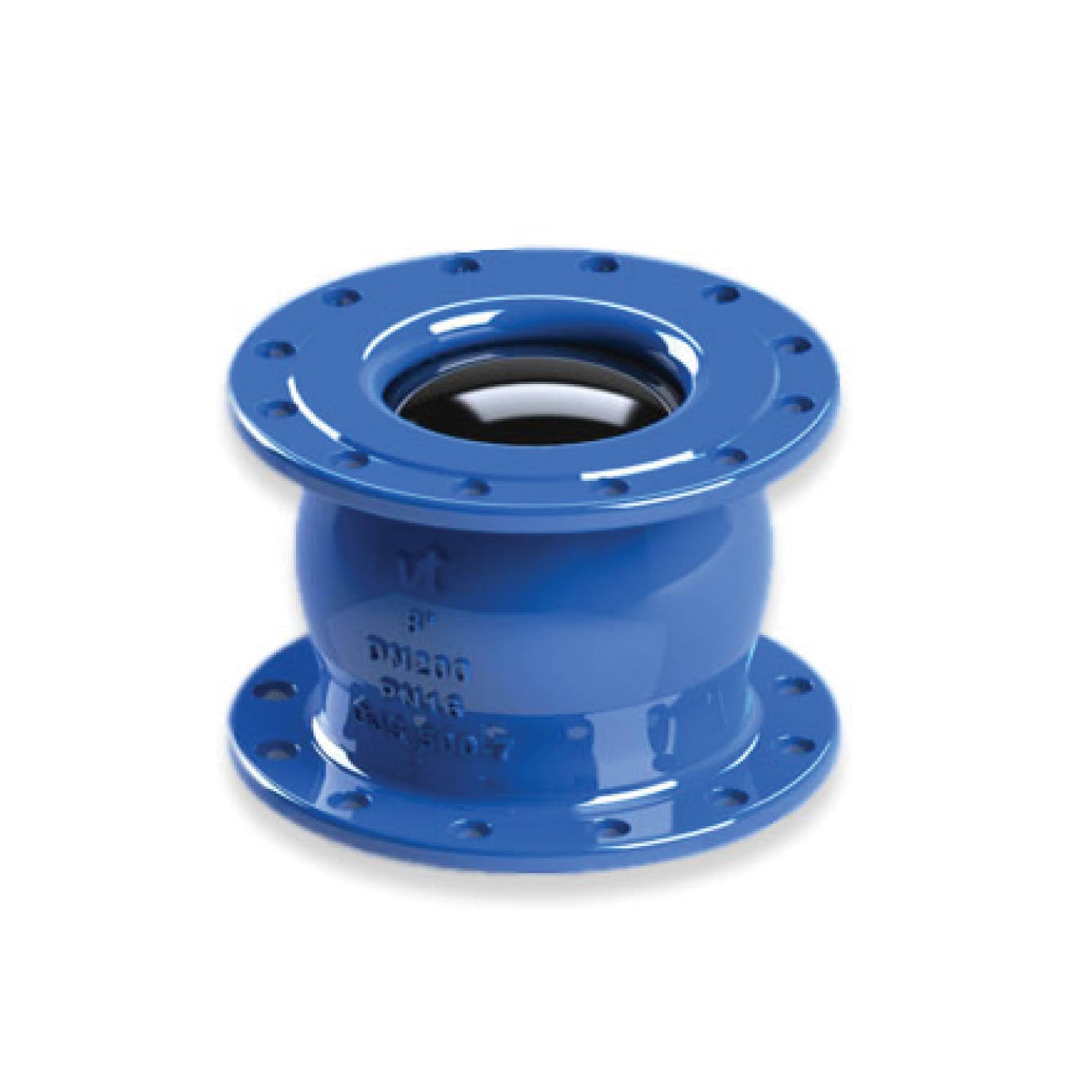

Slient Check Valve
A check valve, non-return valve, reflux valve, retention valve, foot valve, or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.
Silent check valves, also known as non-slam check valves and spring-assisted check valves reduce or eliminate water hammer and its effects.
Construction
Parts | Material |
Body | Ductile Iron ASTM A126 Grade 65-45-12/EN GJS 450-10 |
Seat | Bronze/ Stainless Steel |
Disc | Ductile Iron +EPDM/ SS304+EPDM/ Stainless Steel/ Bronze |
Spring | Stainless Steel AISI304 |
Bushing | Bronze |
Shaft | Stainless Steel AISI 304 |
Description
Spring prevents surge and water hammer.
Perfect tightness.
Range from DN50 up to DN300.
Epoxy paint 200 microns min.
Standards
Flanged: EN1092-2, ASME B16.1 Class 125
Pressure Rating: PN10/16/25, 300psi,
Working Temperature: -10 ℃ - 100 ℃
Available
|
|
RAL 3000 | RAL 5017 |
Suitabilities
Water Fire Fighting
