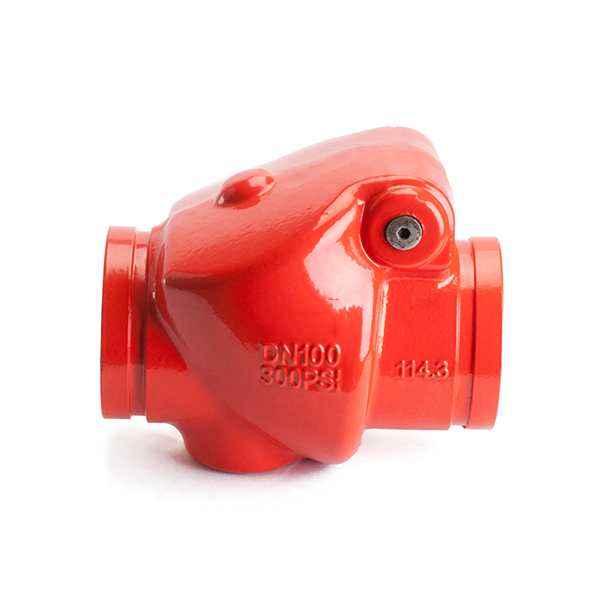

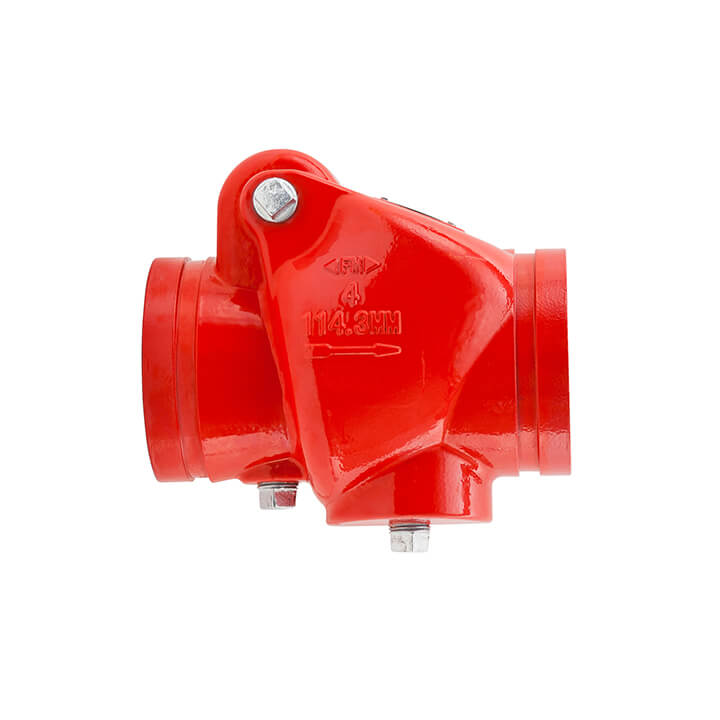

Grooved Swing Check Valve
A check valve, non-return valve, reflux valve, retention valve, foot valve, or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.
Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. Check valves generally are very small, simple, and inexpensive. Check valves work automatically and most are not controlled by a person or any external control; accordingly, most do not have any valve handle or stem. The bodies (external shells) of most check valves are made of plastic or metal.
Construction
Parts | Material |
Body | Ductile Iron ASTM A536 Grade 65-45-12/EN GJS 450-10 |
Seat Ring | Bronze ASTM B62 C83600 |
Disc Sealing Ring | EPDM |
Disc | Ductile Iron ASTM A536 Grade 65-45-12/EN GJS 450-10 |
Clapper Arm | Ductile Iron ASTM A536 Grade 65-45-12/EN GJS 450-10 |
Hinge Pin | Stainless Steel AISI 304 |
Hinge Bushing | Bronze |
Hinge Plug | Stainless Steel AISI 304 |
Spring | Stainless Steel AISI 304 |
Eye Bolt | Carbon Steel Zinc Plated |
Description
Spring loaded for fast closure.
Excellent flow characteristics.
Drain plug at the bottom under the inlet end for attaching a drain valve if required.
Minimum load loss.
Range from DN50 up to DN300.
Epoxy paint 200 microns min.
Standards
Valve: AWWA C 508
Grooved: AWWA C606.
Pressure Rating: PN16, 300psi,
Working Temperature: 0 ℃ - 100 ℃
Available
RAL 3000 | RAL 5017 |
Suitabilities
Water Fire Fighting
