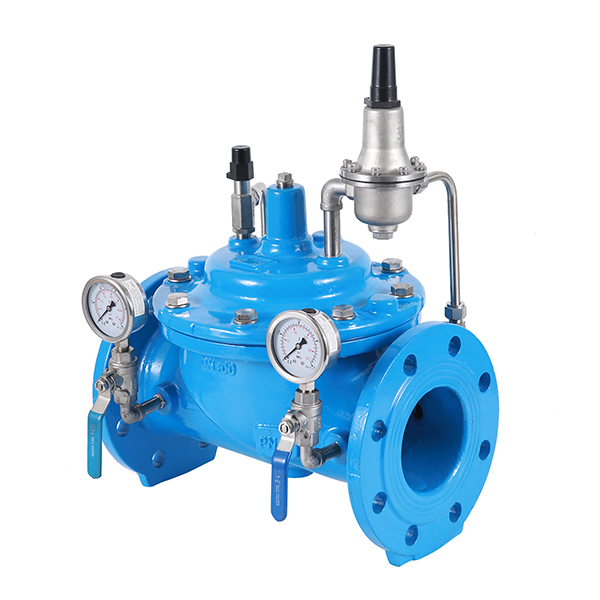

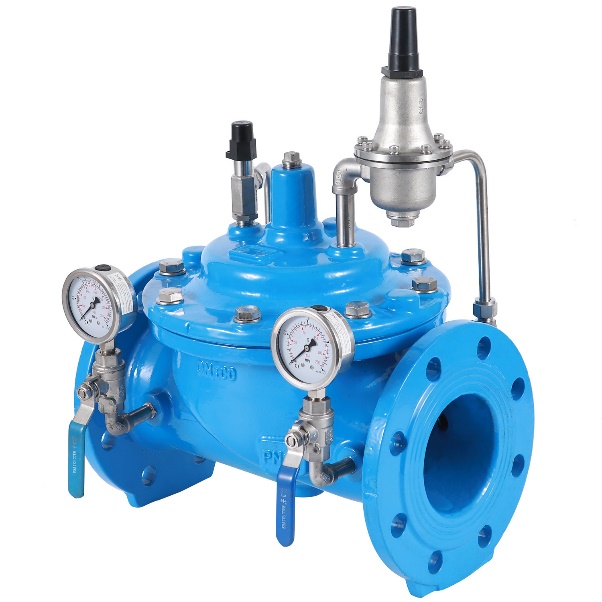

Pressure Reducing Valve
Also called water pressure regulators, water pressure reducing valves are compact, inexpensive valves.
A Pressure Reducing Valve (PRV) is an Automatic Control Valve designed to reduce a higher unregulated inlet pressure to a constant, reduced downstream (outlet) pressure regardless of variations in demand and/or upstream (inlet) water pressure.
Construction
Parts | Material |
Body | Ductile Iron |
Valve Cover | Ductile Iron |
Valve Seat | Stainless Steel AISI 304 |
Valve Plate | Stainless Steel AISI 304 |
Seal Gasket | EPDM |
Valve Disc | Ductile Iron |
Diaphragm | EPDM+ Nylon |
Filter | Stainless Steel AISI 304 |
Needle | Stainless Steel AISI 304 |
Spring | Stainless Steel AISI 304 |
Pilot- Relief Valve | Stainless Steel AISI 304 |
Description
Pilot-operated main valve not subject to pressure fall off.
Outlet pressure is adjustable with single screw.
Adjustable opening/ response speed.
Stabilized regulation at near zero flow.
Range from DN50 up to DN300.
Epoxy paint 200 microns min: RAL 3000.
Standards
Flanged: EN1092-2, ASME B16.1 Class 125
Grooved: AWWA C606
Upstream Pressure Rating: Max 300/175 psi, PN10/16
Downstream Pressure Rating: 30-165 psi
Working Temperature: 0 ℃ - 80 ℃
Available

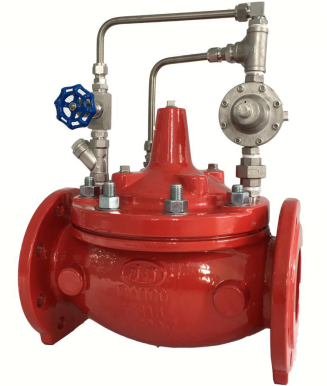

RAL 3000 | RAL 5017 |
Suitabilities
Water Fire Fighting
